GHN4001

Eska; Premier Simplex Optical Fiber Cable, Polyamide Jacket, V-4Y 1P980/1000 Eska™ Premier 1.0 mm Core Simplex Optical Fiber,
2.2 mm OD Polyamide Jacket, V-4Y 1P980/1000


GHN4001 Eska; Premier Simplex Optical Fiber Cable, Polyamide Jacket, V-4Y 1P980/1000

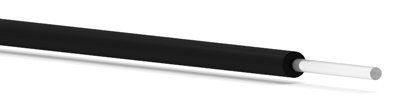

Sectional View

Application: General purpose simplex cable for industrial data applications

Manufacturer: Mitsubishi Chemical Co.

Part Number: GHN4001


Part Number: GHN4001
Price (500 m per spool)


 1 to 2 $ 684.61
 3 to 9 $ 664.00
 10 to 19 $ 635.71
 20 to 39 $ 583.05
 40 to 49 $ 561.04
 50+ Call for Quote

  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
Part Number: 81 0500
Price (per meter)

   $ 2.96
Quantity


  Box Size (mm):
  Gross Weight* (kg): 0


  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 1

Unit Value
Core Diameter μm 920 - 1040
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 4.0
  Buffer/Jacket
Material and Color Polyamide 12 (black)
Indication on Jacket None

Unit Value
Outer Diameter mm 2.2 ± .07
Fiber Tensile Strength N 70
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 55° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 55° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ] 		° C + 75 Max.
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m .17 Max.
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m .19 Max.
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 25
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 70
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]		 Times 5
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]		 N.m 0.4
