MCQ-1500-22

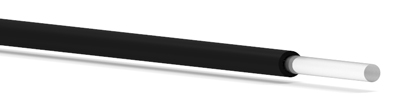

613-core 1.5 mm Fused Multi-core Simplex Cable, |
Application: Manufacturer: Asahi Kasei Part Number: MCQ-1500-22 |
Purchase by the Spool
Part Number:
MCQ-1500-22
Spool Length:
500 m per spool
MCQ-1500-22
Spool Length:
500 m per spool
| Quantity | Unit Price |
|---|---|
| 1 to 2 | $ 1,785.71 |
| 3 to 5 | $ 1,666.67 |
| 6 to 11 | $ 1,433.33 |
| 12 to 23 | $ 1,343.75 |
| 24+ | $ 1,295.18 |
Country-of-origin tariff
added at checkout.
added at checkout.
Purchase by the Meter
Part Number:
81 0557
81 0557
| Meter(s) | Unit Price |
|---|---|
| 1+ | $ 7.50 |
| Structure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buffer/Jacket |
|
|
||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | - 55° ~ 60° C | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | - 55° ~ 60° C | ||
|
No Deterioration in Optical Properties [ under 85% RH condition ] |
° C | N/R | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | 0.6 | |
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operating Temperature ] |
dB/m | N/R | ||
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 3 | |
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | N/R | ||
Industrial Fiber Optics, Inc
Mountain Standard Time
Limited availability in-stock for part #81 0557
