FC POF Cable Assemblies

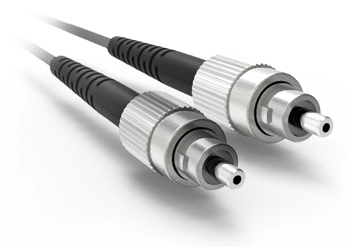

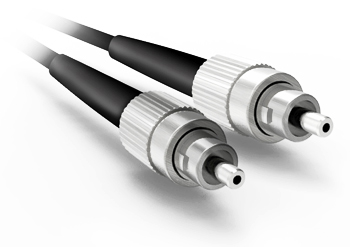

The FC connector is seldom used for plastic optical fiber; however, it is very durable and delivers excellent performance. It's a thread-on connector with excellent retention as well as vibration resistance. Industrial Fiber Optics offers a complete line of simplex POF cables with FC connectors to meet virtually any industrial, medical or data communications requirement. All standard cable lengths are shipped from stock or quickly fabricated to meet customer requirements. Listed below are cable construction categories for the 1 mm plastic optical core.
Custom lengths or cable options are available upon request. Please contact sales@i-fiberoptics.com to prepare a quote.
| Simplex | Series | Connector(s) | Core (mm) |
Core Material |
Outer Dia (mm) |
Jacket Material |
Fiber | Characteristics |
|
FC/FC
|
1.0
|
POF
|
2.2
|
PE
|
GH4001
|
General Purpose
|
|
|
FC/FC
|
1.0
|
POF
|
2.2
|
PVC
|
GHV4001
|
Medical Grade
|
|
|
FC/FC
|
1.0
|
POF
|
2.2
|
PE
|
GHCP4001
|
Industrial Grade
|
|
|
FC/FC
|
1.0
|
POF
|
2.2
|
PA
|
GHN4001
|
High Chemical Resistance
|
|
|
FC/FC
|
1.0
|
POF
|
5.0
|
PE/PVC
|
GHTT4001
|
Harsh Environment
|
|
|
FC/FC
|
1.0
|
POF
|
2.2
|
crosslinked PE
|
BH4001
|
High Temperature Environment
|
|
|
FC/FC
|
1.0
|
POF
|
0
|
PE
|
SH4001
|
Commercial Grade
|
|
| Duplex | Series | Connector(s) | Core (mm) |
Core Material |
Outer Dia (mm) |
Jacket Material |
Fiber | Characteristics |
|
FC/FC
|
1.0
|
POF
|
2.2
|
PE
|
GH4002
|
General Purpose
|
|
|
|
FC/FC
|
1.0
|
POF
|
2.2
|
PVC
|
GHV4002
|
Medical Grade
|
|
|
|
FC/FC
|
1.0
|
POF
|
2.2
|
UL-rated PE
|
GHCP4002
|
Industrial Grade
|
|
|
FC/FC
|
1.0
|
POF
|
6.0
|
PE/PVC
|
GHTT4002
|
Harsh Environment
|
|
|
|
FC/FC
|
1.0
|
POF
|
2.2
|
PE
|
SH4002
|
Commercial Grade
|
