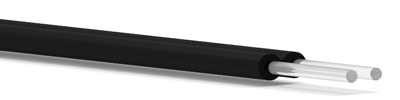

PMC-1000W
37-core 1.0 mm Fused Multi-Core, |
Application: All applications requiring higher bandwidth than 1.0 mm POF and a small bend radii. Ideal fiber for Fast Ethernet or network applications. Manufacturer: Asahi Kasei Part Number: PMC-1000W |
Purchase by the Spool
Part Number:
PMC-1000W
Spool Length:
500 m per spool
PMC-1000W
Spool Length:
500 m per spool
| Quantity | Unit Price |
|---|---|
| 1 to 2 | $ 1,462.50 |
| 3 to 4 | $ 1,406.25 |
| 5 to 9 | $ 1,222.00 |
| 10 to 19 | $ 1,175.00 |
| 20+ | Call for Quote |
Country-of-origin tariff
added at checkout.
added at checkout.

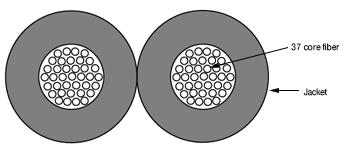

| Structure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buffer/Jacket |
|
|
||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | - 55° ~ 60° C | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | - 55° ~ 60° C | ||
|
No Deterioration in Optical Properties [ under 85% RH condition ] |
° C | N/R | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | 0.3 | |
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operating Temperature ] |
dB/m | N/R | ||
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 5 | |
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | N/R | ||
| Twisting Strength |
Loss Increment <1 dB [ Sample Length: 1 m Tensile Force: 4.9 N ] |
Times | N/R | ||
| Impact Strength |
Loss Increment <1 dB [ Sample Length: 1 m JIS C 6861 ] |
N.m | N/R | ||
Industrial Fiber Optics, Inc
Mountain Standard Time
Estimated LT: 3-4 weeks
Used for data communications applications.
Alternative to Eska MH4002
