Fiber Optic Sensor Cables

Industrial Fiber Optics manufactures a line of plastic transmissive (thru-beam) fiber optic sensor cables. Each part number for these cables includes two transmissive cables. They are used by pointing the two sensor tips toward each other and detecting an object passing between them. The product line includes fiber core diameters from 0.5 to 1.5 mm. Cables are available with many sensor ends with various configurations and thread sizes. The standard length for plastic cables is 2 meters which are trimmed to length with the included fiber cutter. Longer lengths, custom configurations and terminated control ends are available to meet customer requirements.

For further discussion on your custom sensor cable, please send us your technical drawings and specifications to Arnold Reyes sales@i-fiberoptics.com or call 480 804 1227, ext. 209.

Transmissive	Description Part Number	Price (each)
	POF Transmissive 1 mm core M4x0.7 + M2.6x0.45 SS sensing tip IF FP1AA1U02AAN-02-0	$28.88
	POF Transmissive 1 mm core, 105° C M4x0.7 + M2.6x0.45 SS sensing tip IF FP1AA1U02ACN-02-0	$34.00
	POF Transmissive 1.5 mm core M4x0.7 SS sensing tip IF FP1AA1U03AAN-02-0	$35.33
	POF Transmissive 1.5 mm core, 150° C M4x0.7 SS sensing tip IF FP1AA1U03ADN-02-0	$139.69
	POF Transmissive 0.5 mm core 3 mm diameter 15 mm long SS sensing tip IF FP1AANU01AAN-02-0	$28.50
	POF Transmissive 1 mm core 3 mm diameter 15 mm long sensing tip IF FP1AANU02AAN-02-0	$28.00
	POF Transmissive 1 mm core, 105° C 3 mm diameter 15 mm long sensing tip IF FP1AANU02ACN-02-0	$33.12

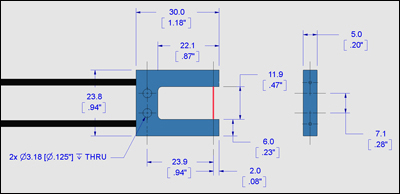

	POF Transmissive Slot 1 mm core U shaped sensing tip IF FPBU10U02AAN-02-0	$135.75
