MCSN-500-10(S)

217-core 0.5 mm Fused Multi-Core Simplex Cable,
1.0 mm OD Polyamide 12 Jacket

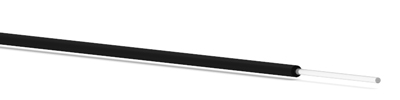

MCSN-500-10(S) 217-core Fused Multi-Core Simplex Cable, Polyamide 12 Jacket


Sectional View

Application: Industrial, commercial and medical sensing and illumination applications requiring smaller bend radii than single core fiber allows.

Manufacturer: Asahi Kasei

Part Number: MCSN-500-10(S)


Purchase by the Spool

Part Number:
MCSN-500-10(S)

Spool Length:
500 m per spool
Quantity Unit Price
1 to 2 $ 1,560.00
3 to 9 $ 1,500.00
10 to 19 $ 1,332.50
20 to 39 $ 1,230.00
40+ Call for Quote


$1,560.00

Country-of-origin tariff
added at checkout.
*Currently 1 spool of 500 meters available.

There is a manufacturer change from a 500m spool to a 1000m spool

  Structure
Core Material PMMA
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture .5
Number of Fibers 1
Number of Cores 217

Unit Value
Cladding Diameter μm 470 - 530
  Buffer/Jacket
Material and Color Polyamide 12
Indication on Jacket None

Unit Value
Outer Diameter mm 1.0 ± .06
Fiber Tensile Strength N 40
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 55° ~ 60° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 55° ~ 60° C
No Deterioration in Optical Properties
[ under 85% RH condition ] 		° C N/R
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m 1.0
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m N/R
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 2
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N N/R
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]		 Times N/R
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]		 N.m N/R
