Home > Optical Fiber and Cable > Asahi Kasei E-Materials > Asahi Kasei Multi-Core Cable > MCJ-1000

MCJ-1000

1300-core 1.0 mm Fused Multi-core Simplex Cable,
2.2 mm OD Polyethylene Jacket

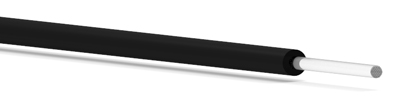

MCJ-1000 1300-core Fused Multi-core Simplex Cable, Polyethylene Jacket

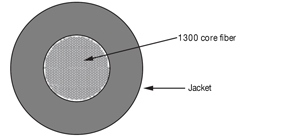

Sectional View

Application:

Manufacturer: Asahi Kasei

Part Number: MCJ-1000


Part Number: MCJ-1000
500 m per spool

 1 to 2 $ 1,961.53
 3 to 4 $ 1,883.08
 5 to 9 $ 1,692.31
 10 to 19 $ 1,641.54
 20 to 24 $ 1,571.43
 25+ Call for Quote

  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
Part Number: 81 0553
Per Meter
   $ 7.72
Leadtime for spool: 3-4 weeks

Limited availability in-stock for part# 81 0553

  Structure
Core Material PMMA
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step index
Numerical Aperture 0.5
Number of Fibers 1
Number of Cores 1300

Unit Value
Cladding Diameter μm 940-1060
Approximate Weight g/m 3.6
  Buffer/Jacket
Material and Color Polyethylene
Indication on Jacket None

Unit Value
Outer Diameter mm 2.2 ± .07
Fiber Tensile Strength N 80
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C -55° ~ 60° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C -55° ~ 60° C
No Deterioration in Optical Properties
[ under 85% RH condition ] 		° C N/R
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m 0.6
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m N/R
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 1
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N N/R
