MBI-750

Coherent 0.75 mm Core Image Bundle

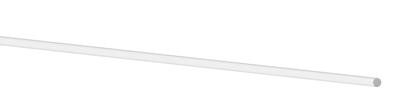

MBI-750 Coherent Image Bundle


Sectional View

Application: Mainly use for medical and industrial scopes.

Manufacturer: Asahi Kasei

Part Number: MBI-750


PN: MBI-750
Price (100 m per spool)

 1 to 9 $ 2,014.00
 10+ Call for Quote

  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
Special Order

  Structure
Core Material PMMA
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Cores 7400

Unit Value
Cladding Diameter μm 705-795
  Buffer/Jacket
Material and Color N/A
Indication on Jacket N/A

Unit Value
Outer Diameter mm N/A
Fiber Tensile Strength N 25
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C -55° ~ 60° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C -55° ~ 60° C
Mechanical
Characteristics
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 25
