MBL-1500

Coherent 1.5 mm Core Image Bundle

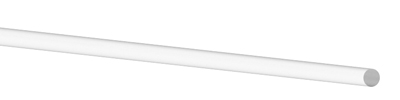

MBL-1500 Coherent Image Bundle


Sectional View

Application: Mainly use for medical and industrial scopes.

Manufacturer: Asahi Kasei

Part Number: MBL-1500


Purchase by the Spool

Part Number:
MBL-1500

Spool Length:
100 m per spool
Quantity Unit Price
1 to 9 $ 2,214.29
10+ Call for Quote

Country-of-origin tariff
added at checkout.
Special Order

  Structure
Core Material PMMA
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Cores 13000

Unit Value
Cladding Diameter μm 1410-1590
  Buffer/Jacket
Material and Color N/A
Indication on Jacket N/A

Unit Value
Outer Diameter mm N/A
Fiber Tensile Strength N 90
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C -55° ~ 60° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C -55° ~ 60° C
Mechanical
Characteristics
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 90
