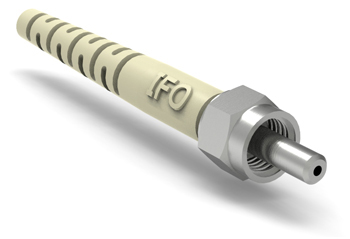

Connector, SMA 905 POFStainless steel retention nut and one-piece ferrule and ferrule holder, white standard-length strain relief, 1.0/2.2 mm POF cable, RoHS compliant.
|
Standard SMA 905 connector for use with industry-standard 1.0 mm core plastic optical fiber with a 2.2 mm outside-diameter jacket. Connector ferrule body features retention ridges for use with push-on strain reliefs. Ferrule and nut are passivated per ASTM A967 for extra corrosion resistance. Includes connector, white strain relief and silicone dust cap. Application: Any indoor industrial or data communications networks including Sercos. Manufacturer: Industrial Fiber Optics Part Number: 51 0058 |
|
Part Number: 51 0058 Price (each) |
|
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | -55 ~ 125 |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | -55 ~ 125 | |
| Optical Properties |
Typical Loss | (650 nm Light) [ 25°C 50% RH ] |
dB | 1.5 |
Industrial Fiber Optics, Inc
Mountain Standard Time
Crimping Tool: IF 370046
