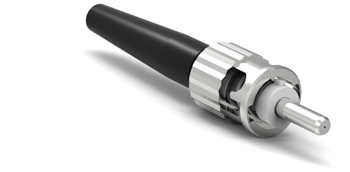

ST Multimode Connector, ⌀231 µm Bore, SS Ferrule - 51 0556
Standard ST multimode connector for use with 200/230 µm large core glass cable with a 3.0 mm outside-diameter jacket. Connector ferrule body features retention ridges for use with push-on strain reliefs. Ferrule and flange are passivated per ASTM A967 for extra corrosion resistance. Comparable to Amphenol 953-106-50231.
Includes connector, black strain relief and dust cap.
Manufacturer: Industrial Fiber Optics
Processing Tools:Epoxy: 40 0005
Polishing Puck: IF 370042
✅ RoHS
PDF
Specifications
| Ferrule | 303 SS | ||||
| Ferrule Holder | 303 SS | ||||
| Retention Nut | Nickel-Plated Zinc | ||||
| Crimp |
Optional |
||||
| Epoxy |
40 0005 |
||||
| Termination/Polishing |
IF 370043 |
||||
| Number of Fibers | 1 | ||||
| Value | Unit | ||||
| Optical Fiber Size | 230 | µm | |||
| Jacket Diameter | 3.0 | mm | |||
| Bore Diameter | 231 | µm | |||
| Bore Diameter Tolerance | +10/ -0 | µm | |||
| Concentricity | ≤10 | µm | |||
| Approximate Weight | 9.07 | g | |||
| Operating Temperature | -40 ~ 85 | ° C | |||
| Typical Loss | 1.5 | dB | |||
