FIP100120140

Polymicro Optical Fiber,
Ultra Low -OH Silica/Silica 100/120


FIP100120140 Polymicro Optical Fiber,<br>Ultra Low -OH Silica/Silica 100/120

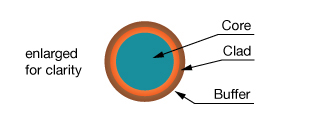

Sectional View

Application:

Manufacturer: Polymicro Technologies

Part Number: FIP100120140



Part Number: FIP100120140
Price (per meter)


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:

  Box Size (mm):
  Gross Weight* (kg): 0

No set spool lengths.

  Structure
Core Material Ultra Low -OH Silica
Cladding Material Doped Silica
Refractive Index Profile Step-index
Number of Fibers 1

Unit Value
Core Diameter μm 100 ± 3
Cladding Diameter μm 120 ± 3
  Buffer/Jacket
Material and Color Polyimide Buffer
Indication on Jacket None

Unit Value
Outer Diameter mm .140 ± .004
Fiber Tensile Strength N
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C -65 ~ +300
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C -65 ~ +300
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C N/R
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 6.0
