Home > C21050

C21050

Lightera Simplex Fiber Cable, Step-Index, UL Riser LSZH rated Jacket Lightera Simplex Fiber Cable,
200/230 μm Step-Index, UL Riser LSZH rated, 2.5 mm OD Jacket


C21050 Lightera Simplex Fiber Cable, Step-Index, UL Riser LSZH rated Jacket

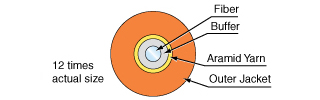

Sectional View

Application: Indoor Industrial

Manufacturer: Lightera

Part Number: C21050


Part Number: C21050
Price (per meter)


 1 to 499 $ 2.38
 500 to 999 $ 1.85
 1,000 to 1,999 $ 1.65
 2,000 to 2,999 $ 1.52
 3,000 to 4,999 $ 1.43
 5,000+ Call for Quote

Quantity


   Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
  Box Size (mm):
  Gross Weight* (kg): 0

Minimum order may be required at time of purchase

NO SET SPOOL LENGTHS

If CONTINUOUS length is required, please note in the comment section of the Shopping Cart.

  Structure
Core Material Silica
Cladding Material Polymer
Core Refractive Index 1.452 @ 850 nm
Refractive Index Profile Step-index
Numerical Aperture 0.37
Number of Fibers 1

Unit Value
Core Diameter μm 196 - 204
Cladding Diameter μm 220 - 230
Approximate Weight g/m 7
  Buffer/Jacket
Material and Color LSZH/ Orange
Indication on Jacket Part number

Unit Value
Outer Diameter mm 2.5
Fiber Tensile Strength N 245
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C -40 to +80
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C -20 to +80
Mechanical
Characteristics
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 245
