C26137
C26137Lightera Duplex Fiber Cable, Step-Index, Waterblocked, Low-smoke zero halogen jacket Lightera Duplex Fiber Cable, 62.5/200/230/500 μm Step-Index, Waterblocked, 2.2 mm OD LSZH jacket
|
Application: Indoor/Outdoor Manufacturer: Lightera Part Number: C26137 |
|
Part Number: C26137 Price (per meter) |
|
Feet to Meters Converter
Type a value in the Feet field to convert to Meters: Meters: |
| Box Size (mm): | |
| Gross Weight* (kg): 0 | |

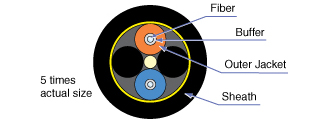

| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buffer/Jacket |
|
|
||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | -40 to +80 | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | -20 to +80 | ||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | < 5 dB/km @ 850 nm | |
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 120 | |
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | 530 | ||
Industrial Fiber Optics, Inc
Mountain Standard Time
MINIMUM ORDER QUANTITY MAY BE REQUIRED
If a continuous length is required, please mention in the Comments Section of the Shopping Cart.
