AC01285-10
AC01285-10Lightera 6-Fiber Fiber Cable, 200/230 μm Step-Index, General purpose, 2.5mm OD PE Jacket |
Application: Outdoor Industrial Manufacturer: Lightera Part Number: AC01285-10 |
Purchase by the Meter

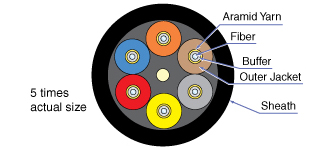

| Structure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buffer/Jacket |
|
|
||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | -40 to +80 C | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | -40 to +80 | ||
|
No Deterioration in Optical Properties [ under 95% RH condition ] |
° C | -40 to +80 C | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | < 6 dB/km @ 850 nm | |
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 150 | |
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | 1668 | ||
